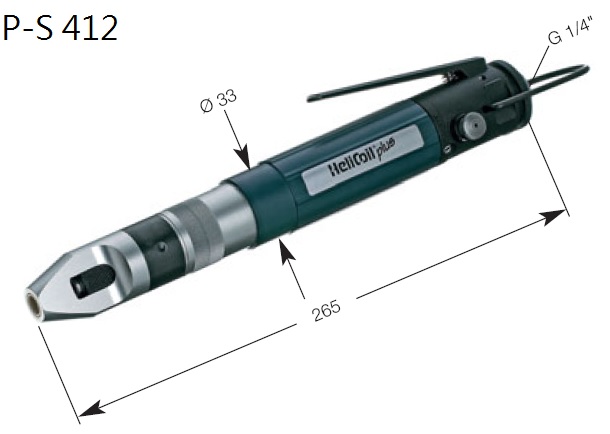

Pneumatic installation tool type P-S 412
For quick processing of HELICOIL® Plus
M 4 to M 12 / UNC 8-32 to UNC 1/2"-13 and UNF 8-36 to UNF 1/2"-20 with HELICOIL® Plus installation mandrel
Technical data:
Idle speed: 1500 rpm at p = 6.3 bar
Adjustable through air pressure
Air consumption: 5.5 l/s at p = 6.3 bar
Torque: M = 1.2 – 4.5 Nm
Steplessly adjustable shut-off clutch
Tool holder: 1⁄4" hexagon socket
with radial bearing
Weight: 0.8 kg
Item No: 4160 270 0010

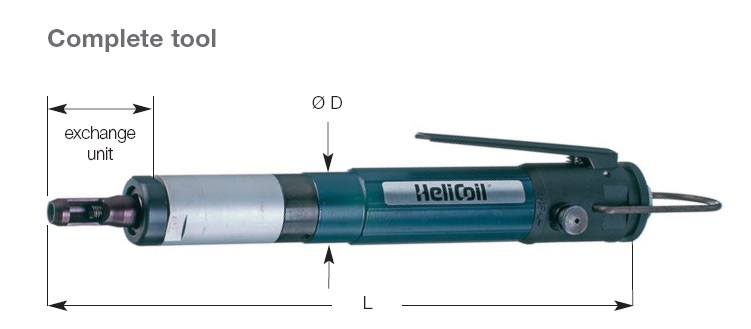

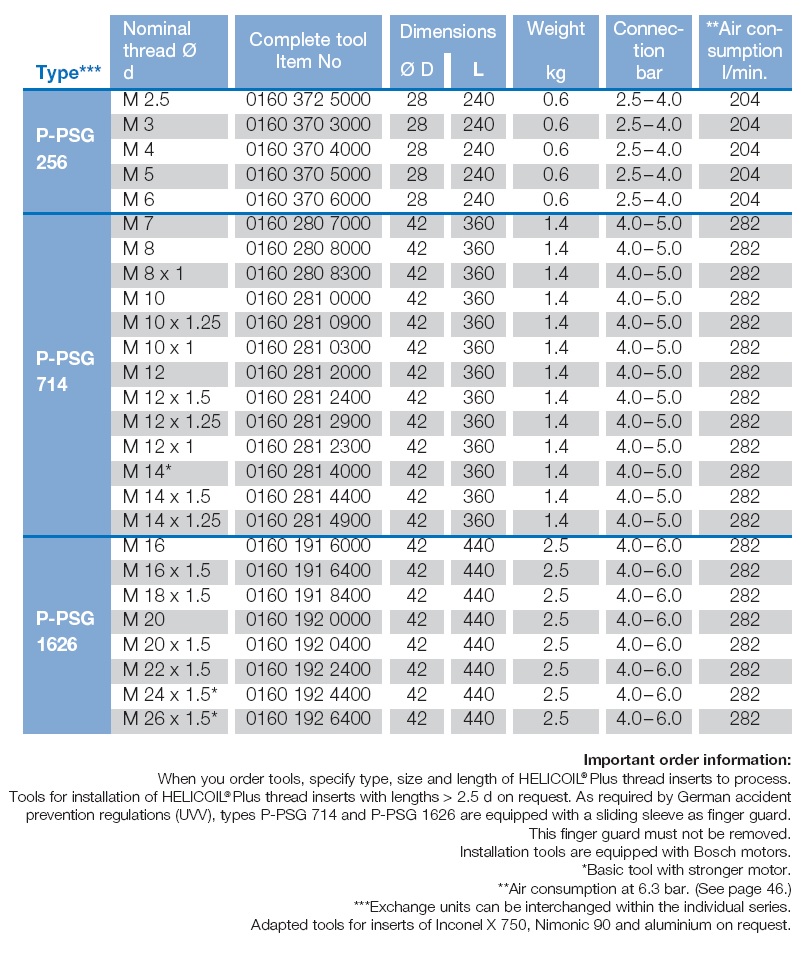

Pneumatic installation tool with prewinder type P-PSG for HELICOIL® P-PSG 256 / P-PSG 714 / P-PSG 1626
For HELICOIL® Classic and HELICOIL® Plus
Free Running and Screwlock
Pitch-controlled HELICOIL® Classic and HELICOIL® Plus installation tool for bulk material processing.
The installation tool is equipped with a reversible compressed-air motor and a size-dependent exchange unit.
The HELICOIL® installation depth is adjusted with compensation washers.
We recommend this tool for medium and large scale production.
影音觀賞：
Pneumatic installation tool type P-S 412
Pneumatic installation tool P-PSG 256/ P-PSG 714 / P-PSG 1626
