Electrical installation tool type E-S 206
For quick processing of HELICOIL® plus
M 2 to M 6 / UNC 2-56 to UNC 1/4"-20 / UNF 4-48 to UNF 1/4"-28
with HELICOIL® plus installation mandrel
Delivery scope:
Straight screwdriver with 1/4" hexagon
Power supply for two screwdrivers
Trunk
Technical data:
Speed without load: 720 min-1
Output voltage: 35 V DC
Torque: M = 0,45 – 0,95 Nm steplessly adjustable shut-off clutch
Tool holder: 1/4" hexagon socket with radial bearing
Weight: 0.31 kg
Order No: 4160 220 0000

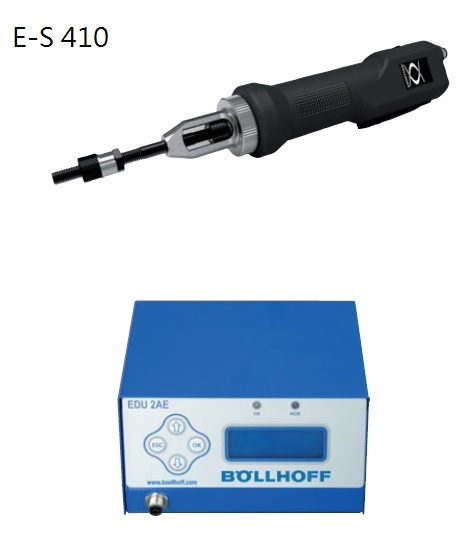

Electrical installation tool Type E-S 410
For quick processing of HELICOIL® Plus thread inserts
M 4 to M 10 / UNC 8-32 to UNC 3/8"-16 and UNF 8-36 to UNF 3/8" -24 with HELICOIL® Plus installation mandrel
Delivery scope:
Straight screwdriver with quick-change chuck 1⁄4" hexagon socket
Speed control with ramp control on control device EDU 2AE
Case
Technical data:
Idle speed: 1200 rpm (steplessly adjustable)
Automatic change-over of the direction of rotation
when reaching the screw-in depth
Torque: 0.9 to 3 Nm
Torque steplessly adjustable on the control device
Tool holder: Quick-change chuck 1⁄4" hexagon socket with radial
bearing for installation mandrel
Weight: 0.57 kg
Item No: 4160 540 0000

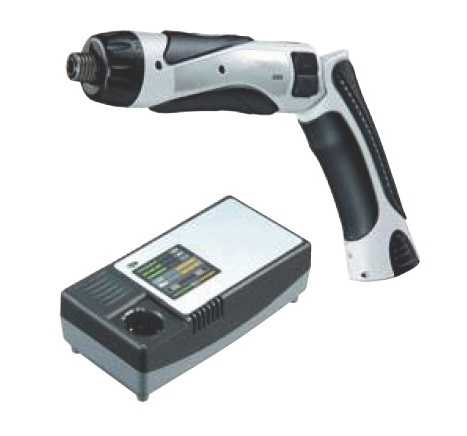

Battery power pack Installation Tool Type B-S 206
For use with HELICOIL® plus
M2 to M6 and UNC 2-56 to UNC 1/4"-20 and UNF 4-48 to UNF 1/4"-28 with HELICOIL® plus installation spindles.
Extent of delivery:
Accumulator pistol baton installation tool (bendable)
2 pcs. Accumulator pack 3.6 V, 1.5 Ah
Fast battery charger
Carrying case
Technical details:
Speed without load: two levels (200 min-1 and 600 min-1); reversible
Torque: Adjust. 21 steps 0.3 – 2.9 Nm / max. 4.4 Nm
Tool holding fixture: 1/4" hexagon socket
Weight including
accumulator battery: 0.5 kg
Accumulator battery: 3.6 V / 1.5 Ah / charging time 30 min.
Order no.: 4160 430 0000
Spare parts and equipment:
Spare accu. battery: Order no. 4160 430 0200
Fast battery charger: Order no. 4160 430 0300

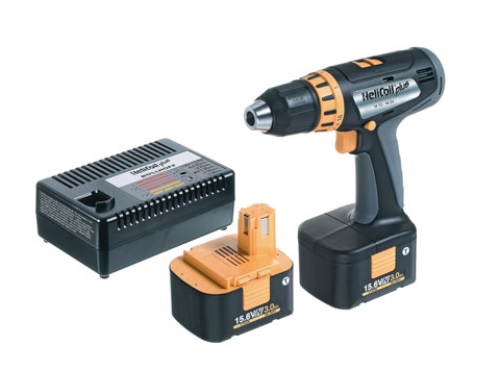

Battery power pack installation tool type B-S 824
For processing HELICOIL® Plus M 7 to M 24 with HELICOIL® Plus installation mandrel
Delivery scope:
Battery gun screwdriver
2 pieces battery pack 15.6 V; 3 Ah
Quick charger
Case
Technical data:
Idle speed: Speed 1 / stepless 65– 450 rpm, reversible
Speed 2 / stepless 200 – 1450 rpm, reversible
Torque: 19-step adjustable 1 – 6.9 Nm / 31.9 Nm max.
Tool holder: Three-jaw chuck 1.0 –13 mm
Weight incl. battery: 2.0 kg
Battery: 15.6 V /3 Ah / charging time 45 min
Item No: 4160 350 0000
Spare parts and accessories:
Spare battery: Item No 4160 350 0200
Quick charger: Item No 4160 350 0300
